Description

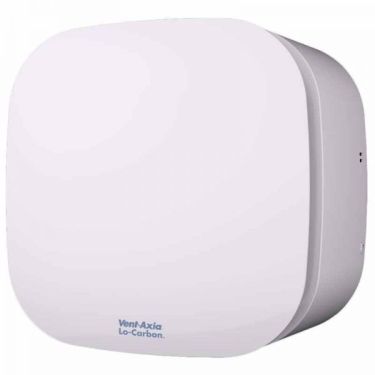

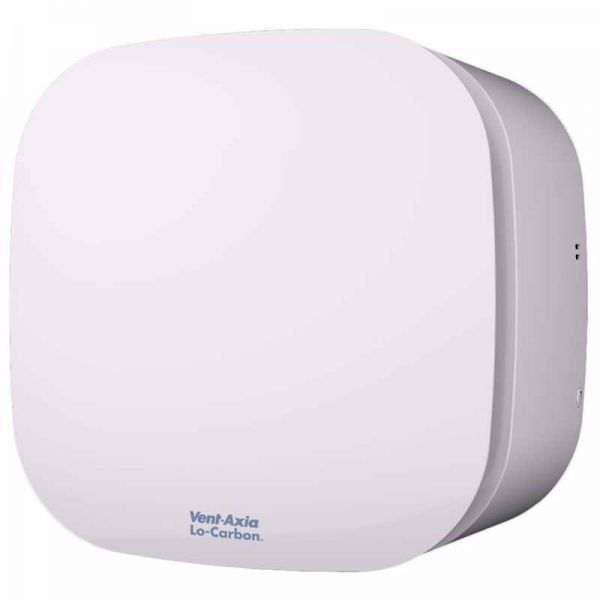

Lo-Carbon Revive SELV 7

• Vent Axia product code: 473849
• 4" / 100mm vent size
• Discreet front tile plate
• SELV (separated extra-low-voltage) Safe for use in bathroom zone 1 such as shower cubicles, above baths and sinks allowing for the 12V transformer to be installed away from the water spray area. IPX7 protection
• Smart sense technology - Easy-to-read LED display with day logger and energy usage data
• Continuous running. This allows for the fan to constantly ventilate the room at a near-silent decibel level
• Lo-Carbon - Longer lasting motor and more energy efficient
• Ideal for bathrooms and kitchens
• Ambient response humidity - Avoids nuisance tripping and therefore increases resident acceptability
• Intuitive LED display helps with easy commissioning at the touch of 3 simple buttons
• Automatically boosted by the built-in humidistat, pullcord or by the switch live function which boosts every time a switch is activated with an adjustable time of 1-30 minutes
• Choice of two speeds for boost, set at installation
• Wall or ceiling mounted
• Designed to provide extraction levels that comply with Building Regulations document F
• Extractor performance:9l/s (trickle mode), 15l/s (high trickle mode), 30l/s (low boost mode), 60l/s (high boost mode)
• Decibel Levels: 15db (trickle mode), 21db (boost bathroom), 33db (low boost kitchen), 47db (high boost kitchen)
• Power consumption: 1.4W (trickle mode), 2W (boost bathroom), 6W (low boost kitchen), 26W (high boost kitchen)
• Height: 193mm
• Width: 193mm
• Projection depth: 132mm
• Total product depth with facia: 162mm
• Guarantee: 7 Years

Lo-Carbon Revive 7/SELV 7
A universal kitchen or bathroom HTP fan with options to be continuous
running or intermittent. Adjustable trickle speed between 6-13l/s and boost
speeds of 15, 30 and 60. Day logger and power run meter as standard. 7
year warranty. Built-in lock function. Adjustable dynamic ambient response
humidity sensor. Timer adjustable between 1 and 30 minutes. In built boost
activated by pullcord, humidity sensor, switched live or remote button. Tile
front for discreet installation.
