Unika Worktop Jigs - SL-UN

Description

Unika Worktop Jigs – SL-UN

Message us with a delivery date that suits your timescales. Delivery will be by two persons. You will receive a countdown to delivery messages and a two-hour time slot.

Unika's SL-UN series comprises precision-engineered worktop jigs crafted from 12mm hardwearing compact laminate, renowned for their durability and accuracy. Designed to facilitate professional-grade cuts in composite, laminate, compact laminate, and solid wood worktops, these jigs are essential tools for achieving seamless joints and precise sink recesses.

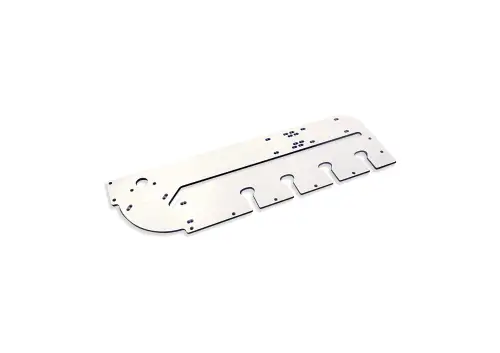

Belfast Sink Recess Worktop Jig – Solid Laminate (71102913)

• Purpose: Specifically designed for routing recesses for single or double Belfast sinks, accommodating ceramic sinks up to 1050mm long and 440–515mm wide.

• Features:

  • Enables accurate routing of the drip channel groove on the underside of the worktop and around the sink recess.

  • Requires a 12.7mm tungsten carbide router cutter and a 30mm guide bush for worktop recess.

  • For the drip channel groove, use a 5 or 6mm diameter (3/16” or ¼”) tungsten carbide round nose cutter and a 16mm guide bush.

• Material: 12mm hardwearing compact laminate, guaranteed never to warp.

• Dimensions: Width: 600mm; Height: 20mm; Weight: 3.8kg.

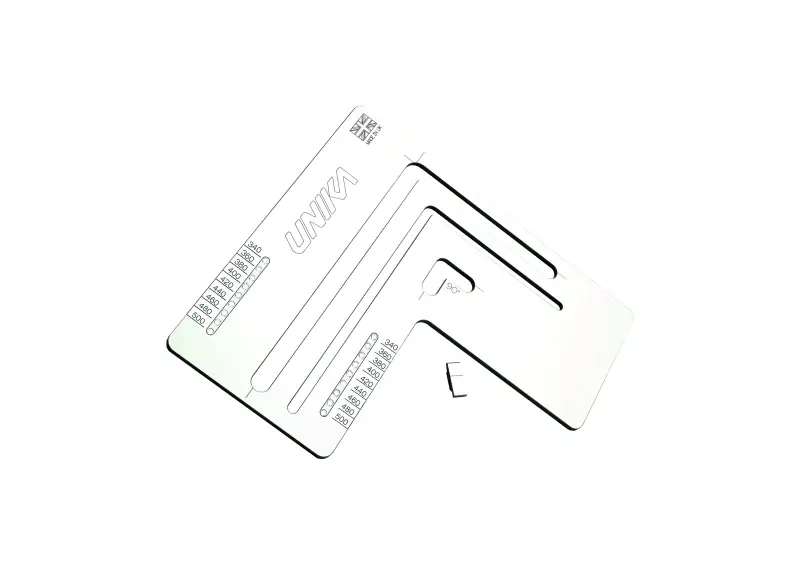

Universal Worktop Jig 700mm – Solid Laminate (71102973)

• Purpose: Versatile jig suitable for cutting composite, laminate, compact laminate, and solid wood worktops.

• Features:

  • Cuts 10mm inset for composite, solid wood, and square edge worktops up to 10mm.

  • Cuts 23mm inset for standard laminate worktops with a radius edge of more than 10mm.

  • Accommodates 500mm, 600mm, 616mm, 635mm, and 700mm worktop widths.

  • Includes 90° left and right joints, corner cutting solution, and bolt slot options for standard and slimline bolts.

• Material: 12mm hardwearing compact laminate, guaranteed never to warp.

• Dimensions: Width: 400mm; Height: 12mm; Weight: 7.04kg.

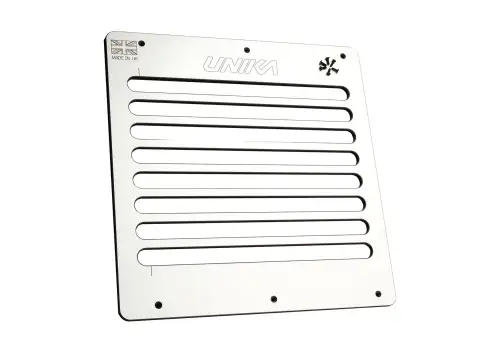

Drainer Jig – Solid Laminate (71102983)

• Purpose: Designed to aid in routing sloping drainage grooves in natural wood or stone worktops, commonly used with Belfast and undermounted sinks.

• Features:

  • Routs sloping drainage grooves approximately 450mm in length.

  • Accommodates mounting grooves for hot rods up to 460mm in length.

  • Includes 6 nylon aligning pegs and full user instructions.

• Material: 12mm hardwearing compact laminate, guaranteed never to warp.

• Dimensions: Width: 635mm; Height: 12mm; Weight: 3.8kg.

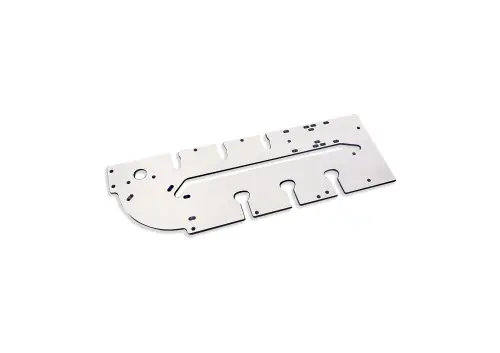

Multi-Surface Worktop Jig 900mm – Solid Laminate (71102970)

• Purpose: Designed to route sloping drainage grooves in natural wood or stone worktops to allow the fitting of a Belfast sink.

• Features:

  • Routs sloping drainage grooves approximately 450mm in length.

  • Routs mounting grooves for hot rods up to 460mm in length.

  • Fast and accurate process; simply line up the jig on the worktop and clamp it into place.

• Material: 12mm hardwearing compact laminate, guaranteed never to warp.

• Dimensions: Width: 400mm; Height: 12mm; Weight: 7.6kg.

Note: Each jig is designed for specific routing tasks and worktop materials. Ensure compatibility with your worktop type and the intended application before selection.
