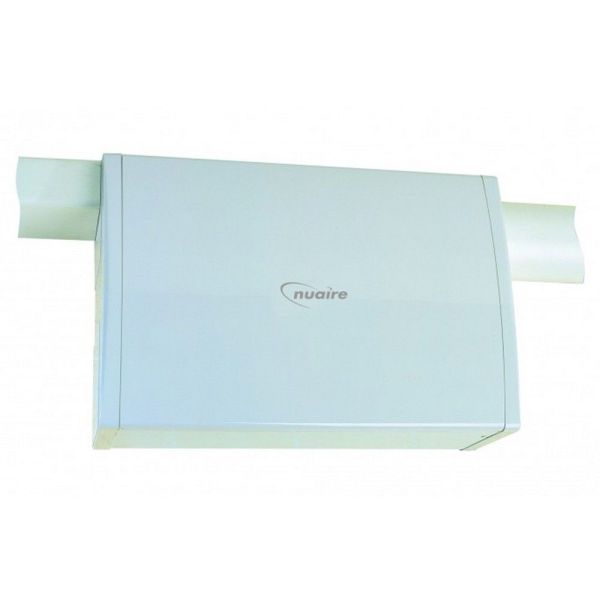

Nuaire Flatmaster 2000L Mould & Condensation Left Hand Discharge Wall PIV
(From 0 Reviews)
Description
Nuaire Flatmaster 2000L Mould & Condensation Left Hand Discharge Wall PIV
There are two versions available: Left and Right. The version you require will be determined by which side of the house/wall the unit can be installed.
The unit is designed to take fresh air from outside, clean it, warm it (if equipped with a heater), and discharge it into the central hallway through a ducting system supplied by the installer. The dwelling internal air discharge grille is typically installed at a high level in a central location within the hallway, but discharging the air down the length of the hallway (away from the front door) should be acceptable as well.
If an existing heat source can warm the discharged air, for example, by placing the discharge grille above a radiator, unit performance may be improved.
If extra heating of the incoming air is required, such as in extremely cold weather, the integral heater can be used to distribute filtered, warmed air throughout the property.
The Flatmaster 2000 range has been specifically designed to ventilate homes without lofts and is based on the popular and low-energy Positive Input Ventilation principle that Nuaire invented in 1972. The unit has an integrated heater that can provide additional heating when needed during extremely cold weather.
The PIV system continuously introduces air into the home at a low rate, eliminating condensation dampness and forcing indoor pollutants such as radon gas and carbon monoxide out. The end result is a clean and healthy indoor environment.
The attractive and compact unit is typically installed in a convenient location, such as a kitchen cupboard or hallway, and is ducted to a central location. Multi-positional spigots enable faster installation by requiring only one external wall penetration.
- PIV eliminates condensation dampness by removing humidity from the air, preventing mould
- growth and controlling dust-mite allergens
- Improves indoor air quality by removing pollutants while keeping outdoor pollutants like pollen and Radon gas to a minimum
- Part F & L of the Building Regulations are met as a low-energy ventilation strategy
- Integral heater - a thermostatically controlled heater with a manual override that warms incoming air and assists in heating the home when needed
- Power consumption is extremely low - as low as 5 watts
- Simple installation and low maintenance (filter cleaning or replacement every 18 months)
- Manual boost switch - for when more ventilation is required
- For peace of mind, a 5-year warranty is provided
- 300-watt space heater
- Operating costs range between 5 and 10 pence per day, depending on the electrical supplier and heating and speed settings.
|
Maximum Area / Property Size (m2) |
150 |
|
Timer |
No |
|
PIR |
No |
|
Humidistat |
No |
|
Pullcord |
No |
|
Continuous Running |
Yes |
|
Smart Control |
Yes |
|
SELV |
No |
|
Integral Shuter |
No |
|
Product Category |
Positive Pressure Units |
|
Round System (mm) |
100 |
|
Flat System (mm) |
110x54 |
|
Product Type |
No Loft PIV Unit |
|
Product Group |
Ventilation Fan |
|
Product Variety |
2000L Left Handed |
|
Voltage (V) |
230 |
|
Power Min (Watts) |
5.1 |
|
Power Max (Watts) |
330 |
|
Colour |
White |
|
Weight (Kg) |
5.2 |
|
Packaged Weight (Kg) |
5.2 |
|
Packaged Length (mm) |
560 |
|
Packaged Width (mm) |
410 |
|
Packaged Height (mm) |
270 |
|
Pallet quantity |
20 |
|
Manufacturer Product Code |
FLAT2000L |
|
Airflow Performance (l/s) - Low |
13.2 |
|
Airflow Performance (l/s) - Med |
22.7 |
|
Airflow Performance (l/s) - High |
35.2 |
|
Airflow Performance (m³/h) - Low |
47.52 |
|
Airflow Performance (m³/h) - Med |
81.72 |
|
Airflow Performance (m³/h) - High |
126.72 |
|
Maximum suggested long duct run (Mtr) |
5 |
|
Fan Operation Modes |
Trickle / Boost |
|
Warranty (Years) |
5 |
MPN:
FLAT2000LSKU:
FLAT2000L
