Nuaire DRI-ECO-HEAT-HCS Drimaster PIV with Heater and Hall Controls

Description

Nuaire DRI-ECO-HEAT-HCS Drimaster PIV with Heater and Hall Controls

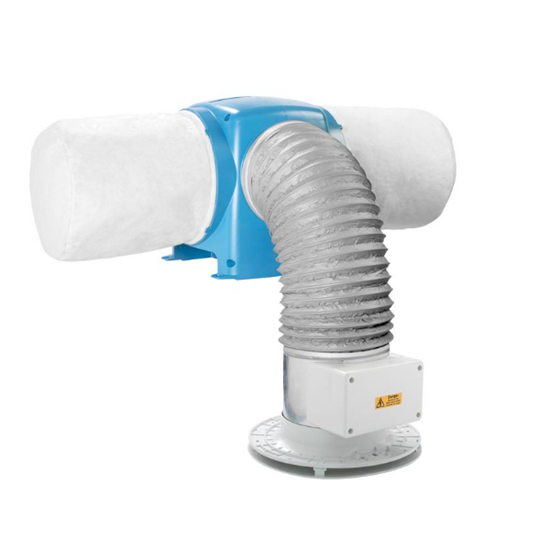

The DRI-ECO-HEAT-HCS is a whole-home ventilation system that uses Positive Input Ventilation (PIV) to introduce fresh, filtered air into your home at a steady rate. It’s installed in the loft, where it draws air through filters and releases it into the house through a ceiling diffuser. The unit includes an integrated heater that warms the incoming air if the loft temperature drops below a certain level, ensuring comfort throughout the home.

Note: This unit is not compatible with the DRI-ECO-4S wall controller as the controls are located in the ceiling diffuser.

Features & Benefits:

• Prevents Condensation: PIV reduces humidity, curing condensation dampness and preventing mould growth.
• Improves Air Quality: Removes indoor pollutants from cooking and cleaning, as well as outdoor pollutants like traffic fumes, pollen, and Radon gas.
• Efficient Air Heating: A 400-watt heater, controlled by a thermostat, tempers incoming air with minimal heat loss.
• Meets Regulations: Complies with Parts F and L of Building Regulations as a low-energy ventilation solution.
• Easy Installation: Typically installed in under an hour.
• Modern Design: Sleek, circular diffuser that blends well with home interiors.
• Hall Control: Controls are conveniently located in the ceiling diffuser for easy access and maintenance.
• Filter Change Indicator: Ensures optimal performance by reminding you to change filters.
• Low Maintenance: Filters need cleaning or replacement only every five years.
• Energy Efficient: Automatically switches to standby mode during warmer months when condensation is less likely.
• Health Benefits: Clinically proven to help allergy and asthma sufferers.

Electrical Information:

• Voltage: 230V 1ph 50Hz
• Power Consumption: 1.6W (min) to 15.3W (max); up to 422W with the heater at full load
• Fuse Size: 3 Amp

This unit also features a 7-segment display in the ceiling diffuser, allowing full control at the touch of a button without needing to access the loft. A lock function prevents tampering.

The Drimaster-Eco units are equipped with an internal temperature sensor that monitors the loft temperature. If the temperature rises above a set level, the unit increases airflow. If it becomes too hot, the unit switches to standby mode. The airflow can be adjusted to suit the size of your home and its response to temperature changes.

Commissioning is easily done through the controls in the ceiling diffuser.
