Nuaire DRI-ECO-LINK-HC Drimaster Eco Positive Input Ventilation Unit - No Heater

Description

Nuaire DRI-ECO-LINK-HC Drimaster Eco Positive Input Ventilation Unit - No Heater

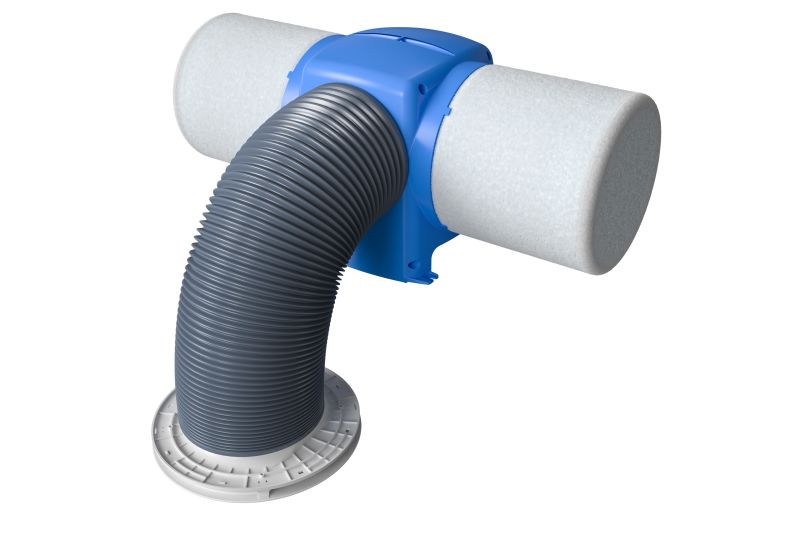

The DRI-ECO-LINK-HC is a whole-home ventilation system that uses Positive Input Ventilation (PIV) to consistently introduce fresh, filtered air into your home, encouraging the movement of stale air out. The unit is installed in the loft, drawing air through filters and delivering it into the living space via a ceiling diffuser.

This model features a 7-segment display in the ceiling diffuser, allowing you to control the system easily without needing to access the loft. It also has a lock function to prevent tampering.

The Drimaster-Eco range includes an internal temperature sensor that monitors the loft temperature. When the temperature exceeds a set level, the unit boosts airflow. If the temperature becomes too high, the system automatically switches to standby mode to conserve energy. The airflow can be adjusted to suit the size of your home and its response to temperature changes.

The DRI-ECO-LINK-HC is a low-energy, cost-effective ventilation solution, ideal for repairs and maintenance projects. It also incorporates radio frequency (RF) technology, enabling compatibility with various remote sensors and switches.

Electrical Information:

• Voltage: 230V 1ph 50Hz
• Power Consumption: 1.6W (min) to 15.3W (max)
• Fuse Size: 1 Amp

Features & Benefits:

• Improves Air Quality: Removes indoor pollutants from cooking and cleaning, as well as outdoor pollutants like traffic fumes, pollen, and Radon gas.
• Occupant Control: A remote switch (DRI-ECO-2S) allows occupants to control their comfort settings.
• Optional Sensors: Additional sensors, such as the remote carbon dioxide detector (DRI-ECO-CO2) and relative humidity sensor (DRI-ECO-RH), can automatically increase fan speed to maintain good air quality.
• Meets Regulations: Complies with Parts F and L of Building Regulations as a low-energy ventilation strategy.
• Easy Installation: Can be installed in under an hour.
• Modern Design: Sleek, circular diffuser that integrates well with home interiors.
• Hall Control: Controls are conveniently located in the ceiling diffuser for easy access and maintenance.
• Filter Change Indicator: Ensures optimal performance by reminding you when it’s time to change filters.
• Low Maintenance: Filters need cleaning or replacement only every five years.
• Energy Efficient: Automatically switches to standby mode during warmer months when condensation is less likely.
• Health Benefits: Clinically proven to help allergy and asthma sufferers.

Ancillaries:

Commissioning can be easily performed using the controls located within the ceiling diffuser. Additionally, this unit's integral radio frequency receiver offers the flexibility to incorporate various optional remote and wired sensors and switches to enhance its functionality.

The following list outlines the ancillaries that are compatible with this model:

• DRI-ECO-2S - 2 switch controller
• DRI-ECO-CO2 - Carbon dioxide detector filter
• DRI-ECO-RH - Remote humidity sensor
• Filters
